NEW QUESTION # 120
Refer to the exhibit.
The data center DC1 uses VXLAN technology The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology The fabric requires
* endpoint information propagated end-to-end across both data centers
* misconfiguration replicated from DC1 to DC2
Which actions must the design include in DC2 to meet these criteria?
Refer to the exhibit The data center DC1 uses VXLAN technology The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology The fabric requires
* endpoint information propagated end-to-end across both data centers
* misconfiguration replicated from DC1 to DC2
Which actions must the design include in DC2 to meet these criteria?
- A. * Set BGP AS to 65501
* Configure RIP as an underlay IGP - B. * Set BGP AS to 65501
* Configure EIGRP as an underlay IGP - C. * Set BGP AS to 65500
* Configure RIP as an underlay IGP - D. * Set BGP AS to 65500
* Configure IGRP as an underlay IGP
Answer: C
NEW QUESTION # 121
Drag and drop the feature descriptions from the left onto the correct UCS Fabric Interconnect modes on the right.
Answer:
Explanation:
NEW QUESTION # 122
Drag and drop the technologies from the left onto the correct descriptions on the right.
Answer:
Explanation:
NEW QUESTION # 123
Which two methods mitigate congestion in a SAN network? (Choose two.)
- A. Configure the port channel to enable individual buffer-to-buffer credits.
- B. Configure the port monitor to allow categorization of a specific device as slow.
- C. Use the port-monitor command to detect slow drain devices.
- D. Configure the flow control for the FC to use R_RDY.
- E. Configure ER_RDY to allow splitting of each ISL between switches into separate virtual links.
Answer: B,C
Explanation:
Section: Storage Network Design
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/interfaces/ cisco_mds9000_interfaces_config_guide_8x/congestion_avoidance_isolation.html
NEW QUESTION # 124
A network administrator must create a redundant vHBA for the mission-critical virtual machines (VMs) installed on a Cisco UCS Fabric Interconnect blade server. The VMs access multiple datastores using VSAN55 and VSAN95. The datastore on which the VMs are hosted must be accessible if any of the uplinks goes offline. Which action meets these requirements?
- A. Configure load-balancing for vHBAs with VSAN55 and VSAN95 attached.
- B. Attach VSAN55 to vHBA1 and VSAN95 to vHBA2.
- C. Enable failover for the vHBA with VSAN55 and VSAN95 enabled.
- D. Assign VSAN55 and VSAN95 to vHBA1 and vHBA2.
Answer: D
NEW QUESTION # 125
A Cisco UCS instance has four interfaces on a UCS VIC. Where on the fabric interconnect does each interface terminate?
- A. physical port
- B. virtual interface
- C. vPC
- D. port channel
Answer: B
NEW QUESTION # 126

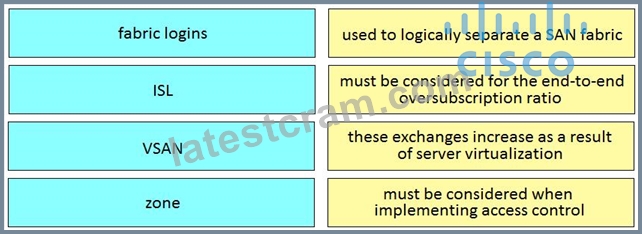

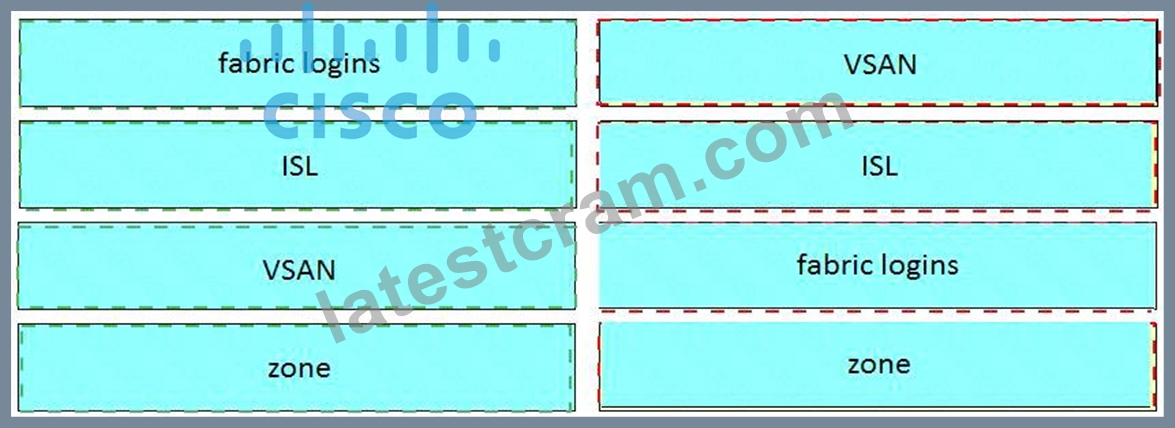

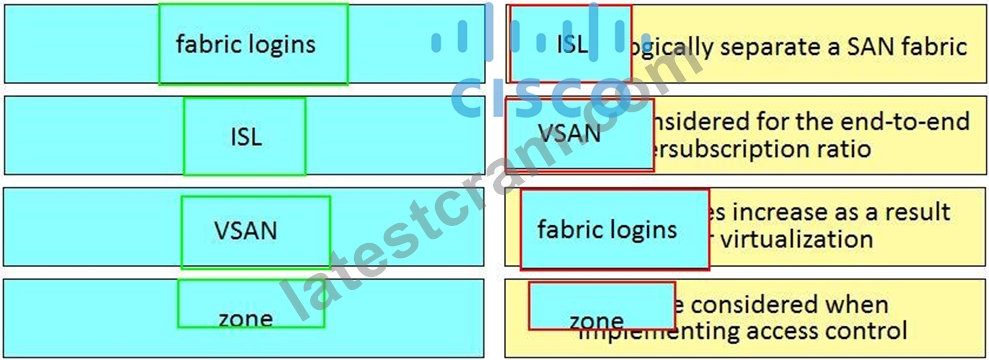

Drag and drop the SAN components from the left onto the correct design considerations on the right.
Answer:
Explanation:
NEW QUESTION # 127
A Cisco UCS instance has four interfaces on a UCS VIC. Where on the fabric interconnect does each interface terminate?
- A. physical port
- B. virtual interface
- C. vPC
- D. port channel
Answer: B
Explanation:
Section: Compute Design
Explanation/Reference: https://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/ucs-6300-series- fabric-interconnects/cisco-unified-fabric.pdf
NEW QUESTION # 128
An engineer enables the HSRP feature on a Cisco Nexus 7000 Series Switch. It must be ensured that the switch manages packets that are sent to the local vPC MAC address, remote vPC MAC address, and HSRP virtual MAC address.
Which command accomplishes this goal?
- A. hsrp preempt
- B. peer-gateway
- C. map-server
- D. peer-switch
Answer: B
NEW QUESTION # 129
An engineer designs a Cisco UCS solution that must provide guaranteed and deterministic bandwidth to a specific server in the environment. The solution must apply to network and storage traffic of C-Series and BSeries servers.
Which solution should be included to meet these requirements?
- A. Pin the server ports of the service profile to dedicated uplink ports.
- B. Pin the vNICs and vHBAs of the service profile to dedicated server ports.
- C. Pin the vNICs and the vHBAs of the service profile to dedicated uplink ports.
- D. Pin the IOM ports of the service profile to dedicated server ports.
Answer: A
NEW QUESTION # 130
A company purchased a Cisco UCS system with four 5108 Chassis populated with UCS B-Series servers. The environment consists of nine Cisco HyperFlex rack servers. An engineer must provision virtual machines using an orchestration tool to optimize overall deployment time.
Which orchestration must be used to meet this requirement?
- A. Cisco Intersight
- B. Cisco AppDynamic
- C. Cisco DNA Center
- D. Cisco Network Assurance
Answer: A
NEW QUESTION # 131
What influences the number of ISLs that are required between Cisco MDS Series switches?
- A. end-to-end oversubscription ratio
- B. N Port virtualization
- C. type of storage
- D. FCoE protocol
Answer: A
Explanation:
Section: Storage Network Design
Explanation/Reference: https://www.cisco.com/c/en/us/products/collateral/storage-networking/mds-9700-series-multilayer- directors/white-paper-c11-729697.html
NEW QUESTION # 132

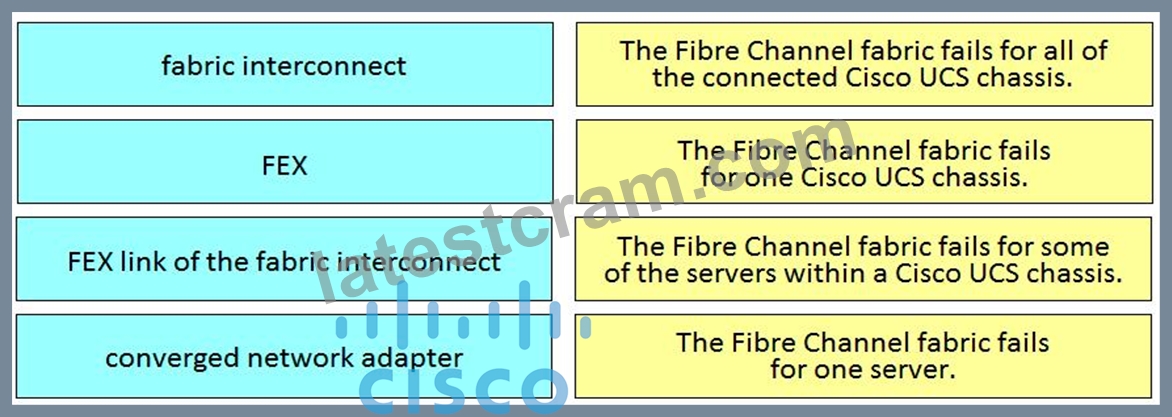

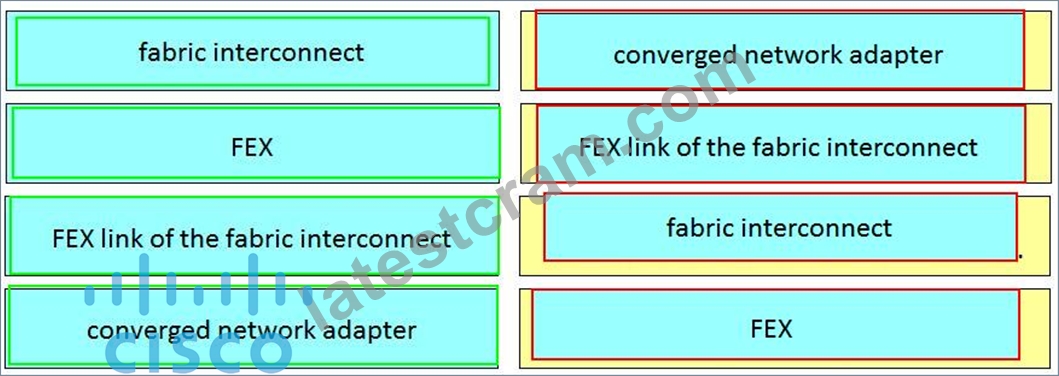

Drag and drop the components from the left onto the descriptions on the right that indicate what occurs to Fibre Channel fabric when that component fails.
Answer:
Explanation:
NEW QUESTION # 133

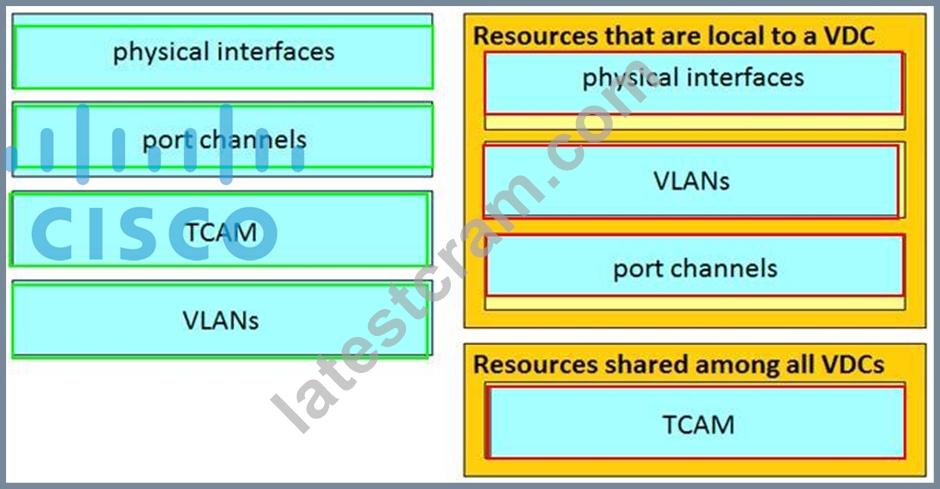

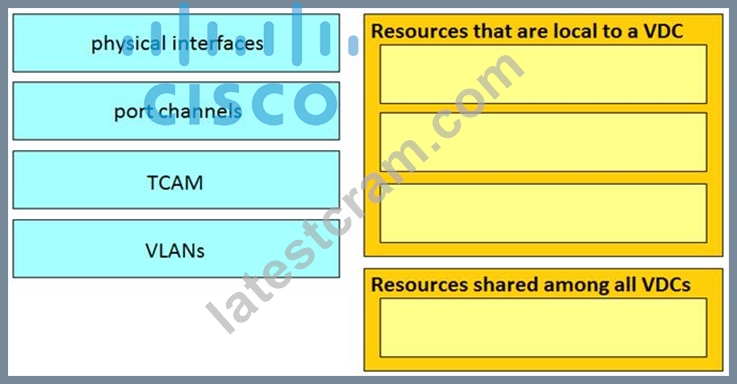

Drag and drop the Cisco Nexus 7000 Series Switch resources from the left onto the correct groups on the right.
Answer:
Explanation:
NEW QUESTION # 134
An engineer deploys LISP VM mobility. Which feature is configured on the interfaces that have VM mobility enabled?
- A. proxy ARP
- B. IP redirects
- C. HSRP
- D. flow control
Answer: A
NEW QUESTION # 135
An engineer manages a multi-organization Cisco UCS fabric and requires a solution to streamline the daily operational tasks of creating service profile templates. The operations team is unfamiliar with programming languages and must have a solution that is written in an easy-to-read and declarative manner. The operations team also requires the tool to be flexible enough to support the creation of custom modules. The development team is familiar with the Python programming language and can develop these custom modules for the operations team. Which tool meets these requirements?
- A. Puppet
- B. CFEngine
- C. Chef
- D. Ansible
Answer: D
NEW QUESTION # 136

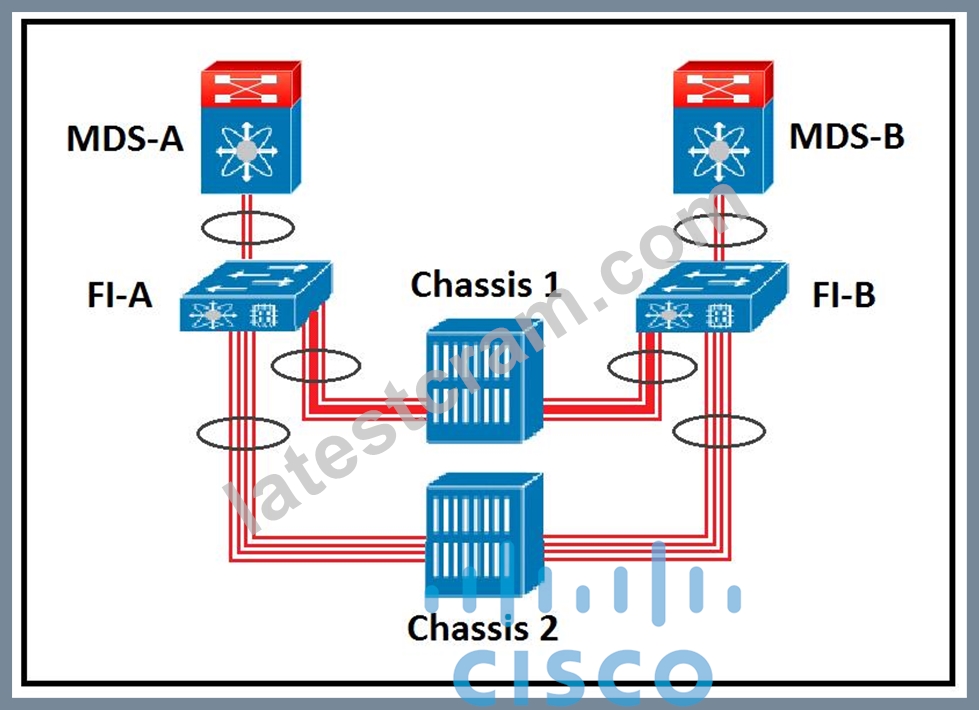

Refer to the exhibit.
An engineer must assign multiple Fibre Channel IDs to a single port channel. Which two features must be enabled this goal? (Choose two.)
- A. end-host mode feature on the Cisco UCS Fabric Interconnects
- B. SAN Pin Groups on the Cisco UCS Fabric Interconnects.
- C. NPV feature on the Cisco MDS Series.
- D. Smart Zoning feature on the Cisco UCS Fabric Interconnects
- E. NPIV feature on the Cisco MDS Series
Answer: C,E
NEW QUESTION # 137
Drag and drop the SAN components from the left onto the correct design considerations on the right.
Answer:
Explanation:
NEW QUESTION # 138
A company has added a new FCoE storage array to increase the performance of datastore access for end users. This storage array is directly connected to the Cisco Nexus 5672UP switches using four 10G port-channel interfaces. After deployment, the end users fail to access the datastore compared to the older solution. A network engineer verified the port-channel interface and finds that the congestion occurs when PFC frames are generated at the FCoE ingress interface. Which action must be taken to resolve the congestion issue?
- A. Reserve bandwidth for FCoE VLAN on the port-channel interface connected with storage.
- B. Enable the FCoE class in QoS on Cisco Nexus 5672UP switches.
- C. Add an additional FCoE VLAN to the SAN network.
- D. Increase the queuing buffer in the port-channel interface connected to the storage array.
Answer: B
NEW QUESTION # 139
An engineer is building a data center network with VXLAN EVPN. The requirement is to use multicast for the broadcast, unknown unicast, and multicast replication.
Which two VNI to multicast group mapping methods must be used to meet these requirements? (Choose two.)
- A. many NVE to one multicast group
- B. one NVE to many multicast groups
- C. many VNI to many multicast groups
- D. many VNI to one multicast group
- E. one VNI to one multicast group
Answer: B,D
NEW QUESTION # 140
Which authentication software natively runs within the CLI of Cisco NX-OS devices?
- A. Puppet
- B. Chef
- C. Python
- D. Ansible
Answer: D
NEW QUESTION # 141
......
