The BIM manager received a subcontractor's 3D model containing specialty equipment to be integrated into the federated model. Upon review, they observe that:
Many elements lack consistent object styles and category assignments.
Some components are modelled with excessive detail, affecting performance.
Embedded data does not follow the project's naming conventions outlined in the BEP.
What is the most appropriate next step when evaluating this geometry and content?

• A. Approve the model as-is to avoid delaying coordination and document the issues for review at the next quality-control milestone.
• B. Instruct the subcontractor to simplify geometry and reduce file size, even if some metadata and classifications are lost.
• C. Import the model into the coordination environment and apply view filters to hide excessive detail and inconsistencies.
• D. Review the model against content standards, document noncompliance, and request revisions aligned with agreed deliverable requirements.

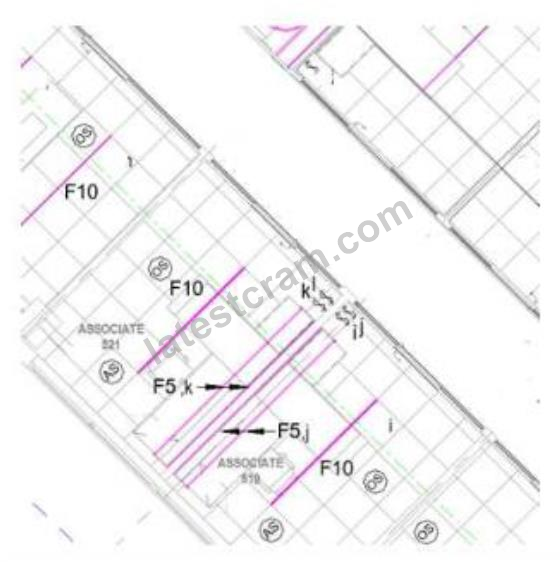

Refer to the exhibit.

A designer cannot see a 2x4 tile ceiling in the hallway area of their Reflected Ceiling Plan, but that same ceiling is visible in a 3D view. The 2x2 ceilings in the other rooms are visible in both views.
What are two possible reasons for this? (Select two.)

• A. A Plan Region with a higher cut level has been applied to that area.
• B. A View Filter has been applied for that ceiling type.
• C. Hide in View by Category was applied to that ceiling.
• D. A View Template has been assigned with ceilings category visibility off.
• E. The ceiling was inadvertently deleted.

A BIM manager is running clash detection for the first time on a large retail project during the Design Development phase. After copying all the models to the coordination space on Autodesk Forma, the matrix shows no clashes among any of the models.
How should the BIM manager proceed?

• A. Add sheets to the publish settings and rerun the clash.
• B. Use the project as a case study for a firm-wide presentation.
• C. Continue forward on the project because there are no coordination issues.
• D. Verify the shared coordinates for each model and republish.

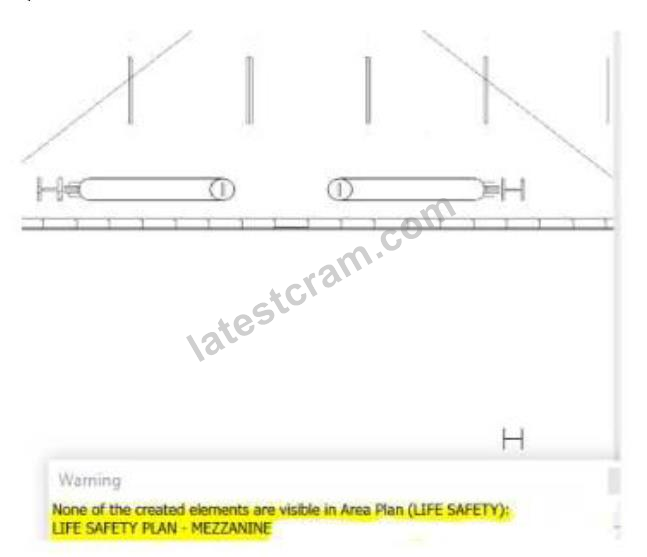

A designer needs to add Area Lines in an Area Plan, but upon adding them, they receive a message stating that none of the created elements are visible.

Where can they check to resolve the issue?

• A. Detail Level
• B. Plan Region
• C. Visibility/Graphics
• D. Area Scheme

During early coordination on a hospital project, the BIM manager runs a general clash detection between all models and generates over 3,000 clash results. Many are low-priority issues, such as wall-grid overlaps and minor duct-ceiling intersections. The project's clash matrix outlines only high-impact clashes between structural, MEP, and architecture in specific zones.
For the BIM manager, what is the most appropriate next step to align clash reporting with the project's coordination strategy?

• A. Share the full clash report with all project teams and instruct them to determine and resolve the issues they consider most important.
• B. Disable or relax selected non-critical clash rules within the detection software to temporarily reduce the total number of reported issues.
• C. Export the entire clash list into spreadsheet format so project managers can manually sort, review, and prioritize the items by trade.
• D. Apply the clash matrix to filter out low-priority clashes, adjust detection tolerances where appropriate, and produce reports for each discipline's scope.
